Roland MPX-90S
Roland MPX-90S
Roland MPX-90S
Roland MPX-90S
Roland MPX-90S
Toimitusaika alk.
7 pv
Toimituskulut alk.
3 690,00 €
ALV 0,00 %

Roland MPX-90S on monipuolinen kaiverruskone jolla on kyky kaivertaa sekä tasaiselle, että kaarevalle pinnalle. Koneella kaiverretaan eri materiaaleille kuten ruostumaton teräs, alumiini, messinki, kupari, platina, kulta, hopea ja kirkas akryyli.
MPX-90S tarjoaa 2,5 kertaa aiempien laitteiden kaiverrustehon tuottaakseen terävää yksityiskohtaa metallisille pinnoille. Käyttäjäystävälliseksi suunniteltu MPX-90S sopii työpöydälle ja toimitetaan suunnitteluohjelman kanssa.
Valokuvausliikkeet, kultasepät, matkamuistomyymälät ja pienten laaatojen kaivertajat ovat laitteen yleisimpiä käyttäjiä.

  • Profitable metal giftware personalisation and direct parts marking

    Perfect for gift personalisation or industrial parts marking, the METAZA MPX-90S compact engraver is an affordable, easy-to-operate device ideal for users of all level of experience to mark gold, platinum, silver, copper, stainless steel, titanium, brass and more.

    Without debris, noise or odour the MPX-95 makes it easier than ever to add photo-realistic images, text, logos and data to metal surfaces.

    Ideal for use in-store, at home, or in workshop, lab or classroom environments.

    Personalise hundreds of metal items


    With the MPX-90S it’s possible to customise a huge range of consumer and corporate gifts, mementoes and keepsakes, including:

              • Pens and stationery
              • Spectacles and sunglasses
              • Jewellery, watches and cufflinks
              • Pet tags
              • Hipflasks and tankards
              • Vases and urns
              • USB sticks and smart devices
              • Trinket boxes
              • Key fobs
              • Trophy plates
              • Lighters
              • Cutlery, and more.

    Added versatility with removable base and Gift Kit

    The MPX-95 introduces new features for imprinting onto more gift items and a wider range of components. These include a removable base plate and base unit to allow imprinting onto larger items, and an optional Gift Kit for expanding profit-making personalisation possibilities.

    Gift Kit includes:

              • Movable sliding centre vice with clamp pins
    Uniquely position different-sized clamp-pins to hold irregular-shaped items. The adaptable clamp-pin set-up supports repeat personalisation of items such as pet tags and jewellery plus cylindrical items like tankards, flasks and drinks bottles.

              • Centre vice
    Enables quick set-up and personalisation of items when imprinting onto many different items in succession.

              • Head caps
    Thirty rounded head caps are included for imprint use on curved and irregular surfaces.

    Variable data imprinting

    Import variable data (as txt or csv file) into the included Dr. Engrave software and automatically apply serial numbers, data and names to each item in a giftware series. Or add unique security numbers to expensive jewellery items.

    Compact, portable design

    The fully-enclosed MPX-95 is a compact and portable device that runs quietly, cleanly and safely. It can be taken anywhere and used to produce souvenirs at weddings, craft fairs, pet shows and other events.

    Industrial applications

    The MPX-95 is ideally suited for industrial applications such as the production of nameplates and serial number plates. The included software helps you quickly print a range of variable data, such as sequential serial numbers.

  • Imprint photographs, vector graphics and text

    A durable diamond-tipped stylus strikes the material at high speed and with precision to reproduce the most delicate gradations and intricate fonts on a wide range of hard materials. The results are exceptional, with highly reflective detailed graphics, fine text and complex data patterns.

    Integrated laser pointer delivers pinpoint positioning accuracy for faster setup

    A built-in laser pointer accurately defines the origin point on media before imprinting. At the touch of a button, users can set the print position for accurate positioning of the engraving every time, reducing the risk of alignment errors and material wastage.


    Easy-to-use software included

    The following intuitive bundled software enables production right out of the box:

    Import and edit files from EPS, JPEG or BMP formats, or directly from digital cameras, scanners and smartphones. Add text, borders and backgrounds, and rotate text and images. METAZAStudio also supports text and line art in vector format.

    Dr. Engrave
    Featuring TrueType fonts and an automatic layout feature for importing Excel and CSV files, Dr. Engrave supports production of variable data projects.


    Combine with other devices for ultimate personalisation potential

    Used in combination with a print & cut device (VersaSTUDIO BN-20 or TrueVIS series) or UV-LED printer (VersaUV LEF range), the MPX-95 can extend the number of graphic applications and personalisation solutions you can produce for the giftware market.

    Highest standard of quality, reliability and support

    A 1 year manufacturer’s warranty and industry-leading customer service ensures that your device is always up and running.

    Advanced features

              • Diamond-tipped stylus marks silver, copper, platinum, brass, and
                  aluminium and other hard metals up to 200HV (Vickers hardness)
              • Includes easy-to-use METAZAStudio software
              • Built-in laser pointer for quick and accurate imprint set-up
              • Removable base to accommodate large and irregular-shaped objects
              • Automatic surface detection for error-free imprinting
              • Variable data printing capabilities for applying sequential data
              • Compact and fully enclosed – runs quietly and safely in any kiosk,
                  retail outlet, workshop, classroom or lab
              • Portable design for production on-site at events


Added Versatility with Removable Base and Optional Kits

The MPX-95 introduces new features for imprinting onto more gift items and a wider range of equipment. These include a removable base plate and base unit to allow imprinting onto larger items, and the following kits for expanding application possibilities:

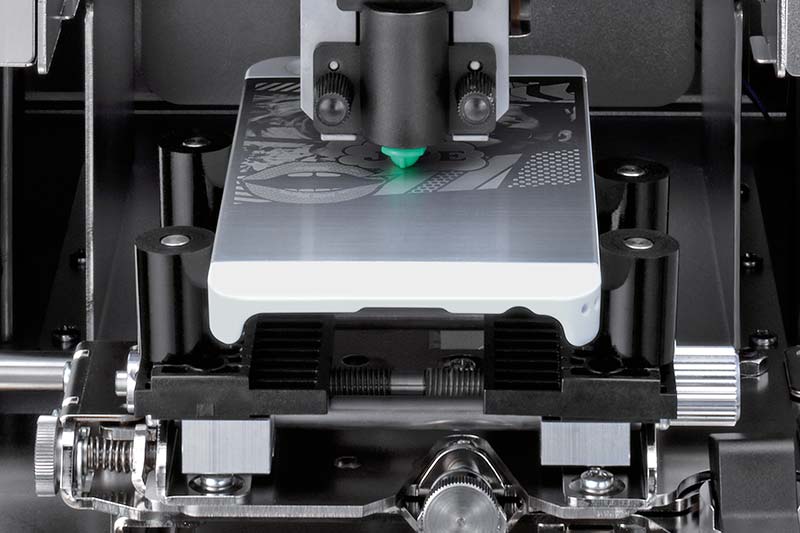

MPX-95 with Gift Kit


Gift Kit

MPX-95 Gift Kit

Featuring a standard center vise and adjustable clamp-pin vise, the Gift Kit supports personalization of simple metal items plus curved and irregularly shaped items. The Gift Kit is an essential addition for gift personalization.


Imprintable materialGold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc.
(Vickers hardness [HV] of the imprint surface must be 200 or less.)
Loadable material sizeUsing a base table + base plate:Max. 100 mm (W) X 200 mm (L) X 40 mm (H))
(200 mm (W) X 100 mm (L) X 40 mm (H))
Using a base plate only:Max. (100 mm (W) X 200 mm (L) X 70 mm (H))
(200 mm (W) X 100 mm (L) X 70 mm (H))
*The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area.
Imprint areaMaximum imprintable area80 mm (W) X 80 mm (D) X 70 mm (H)
Recommended imprint area50 mm (W) . 50 mm (D) . 70 mm (H)
ResolutionHigh resolution529 dpi
Photo353 dpi
Text265 dpi
Vector1058 dpi
Imprint directionUnidirectional imprinting or bidirectional imprinting (Selectable with Windows driver)
Imprint speed (Default)Photo50 mm/sec
High resolution/Text33 mm/sec
Vector24 mm/sec
Power requirementsDedicated AC adapterAC 100 to 240 V ±10%, 50/60 Hz
Main unitDC 19 V, 1.2 A
Power consumptionApprox. 21 W
Operating noise70 dB (A) or less
Operating temperature10 to 30°C
Operating humidity35 to 80% (no condensation)
External dimensions286 mm (W) x 383 mm (D) x 308 mm (H)
