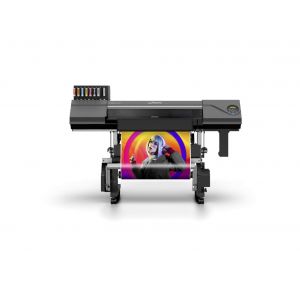

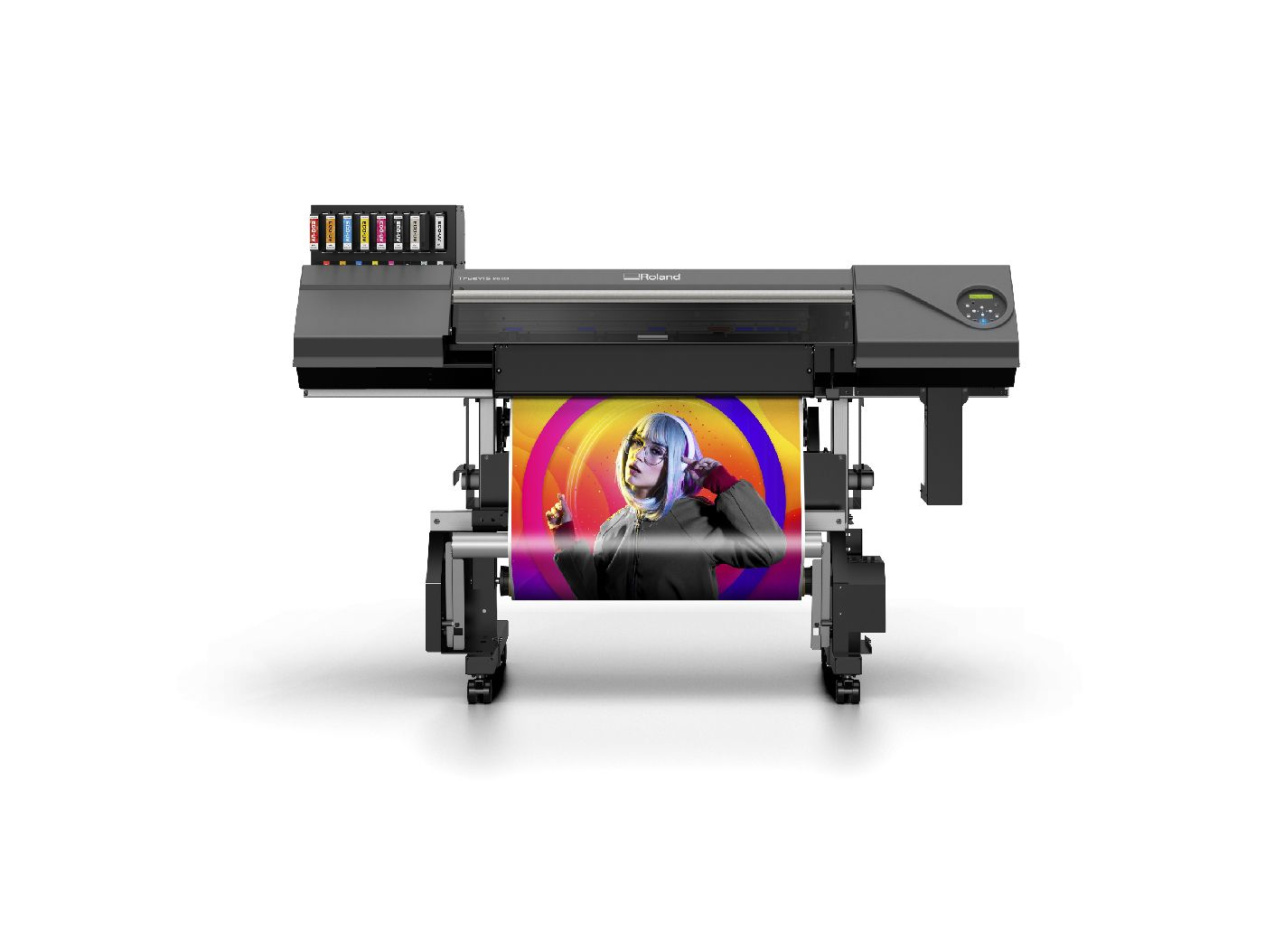

Roland TrueVis MG-300 & MG-640

Name: Roland TrueVis MG-300 & MG-640
SKU: MG-300 & MG-640

Etusivu > TULOSTUS > UV-tulostimet

Valmistaja

Roland DG

Tuotekoodi

MG-300 & MG-640

Toimituskulut

250,00 €

datasheet_truevis_mg_en.pdf

Suunniteltu perfektionisteilta perfektionisteille!

MG-sarja nostaa UV-tulostusleikkuun uudelle tasolle. TrueVis MG-300 & MG640:n tulostuslaatu, värientoisto, leikkaustarkkuus ja materiaalien yhteensopivuus ovat vertaansa vailla!

MG-sarjan tulostimilla luot mm. todenmukaisia pakkausmalleja, korkealaatuisia etikettejä, upeita kylttejä, ainutlaatuisia esillepanotuotteita, erikoismerkintöjä.

Korkealaatuista tulostusta
ECO-UV EUV5 -musteiden, uusimpien tulostuspäiden ja voimakkaiden LED-lamppujen yhdistelmällä saavutat optimaalisen tulostuslaadun pienimmällekin yksityiskohdalle.

All-in-One -ratkaisu
Tulostus, leikkaus, niittaus, perforointi, lakkaus sekä kohokuviointi onnistuvat kaikki tällä yhdellä ja samalla laitteella.

Aikaa säästävä
Tuotteiden valmistusprosessi on erittäin nopea tulosteiden ollessa saman tien valmiita viimeistelyyn ja asennukseen.

Myös saatavilla:
- Valinnaisen ET-30 Extension Table -jatkopalan avulla työstät MG-300:lla myös puolijäykkiä materiaaleja kuten pahvia tai pakkausmalleja.
- Valinnaisen TB-30 Tension Bar -lisätangon avulla työstät MG-300:lla myös ohuita kalvoja esimerkiksi joustavampiin pakkauksiin.

Combining TrueVIS heritage, Print & Cut capabilities and the benefits of UV-LED printing, the MG add a new dimension to graphic printing. Latest generation UV inks print onto a vast range of media and the cool running LED lamps ensure optimum curing. Special inks such as White, Gloss and Printable Primer allow for premium finishes for many applications and the additional Red and Orange inks produce high quality print reproduction and simplified spot colour matching. • Performance: Successor product of LEC2 devices• Value: Sharing core functionality of the LG Series at a more affordable price• Color Reproduction: Red & Orange inks compliment the colour gamut available from the 500ml cartridge supplied EUV5 inks• Opportunities: Target new markets and decorate more substrates by combining UV Decal ink to EUV5• Versatility: Compatible with optional extension table ET-30/64 for printing to semi-rigid substrates and tension bar TB-30 for flexible packaging printing.

Model			MG-640	MG-300
Printing method			Piezo ink-jet method
Media	Width		210 to 1625 mm (8.3 to 64 in.)	182 to 762 mm (7.2 to 30 in.)
	Thickness		Max. 1.0 mm (39.3 mil) with liner, for printing
			Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter		Max. 210 mm (8.2 in.)
	Roll weight		Max. 40 kg (88 lb.)	Max. 25 kg (55 lb.)
	Core diameter		76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1			Max. 1600 mm (62.9 in.)	Max. 736 mm (28.9 in.)
Ink	Type		ECO-UV (EUV5) 220 ml cartridge (white)
			ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
	Colors		Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss)
			Eight colors (cyan, magenta, yellow, black, red, orange, white)
			Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer
			Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer
			Six colors(cyan, magenta, yellow, black, white, gloss) and primer
			Six colors(cyan, magenta, yellow, black, white, gloss)
			Four colors(cyan, magenta, yellow, black)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1440 dpi
Cutting speed			10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2			30 to 500 gf
Blade	Type		Roland CAMM-1 series blade
	Offset		0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting)			0.025 mm/step (0.98 mil/step)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-240 Va.c. 50/60Hz 2.8 A	100-240 Va.c. 50/60Hz 2.7 A
Power consumption	During operation		Approx. 250 W	Approx. 240 W
	Sleep mode		40 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		53 dB (A) or less
Dimensions (with stand)			2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.)	1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.)
Weight (with stand)			163 kg (360 lb.)	125 kg (276 lb.)
Environment	During operation 3	Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation)
	Not operating	Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
Specifications, designs and dimensions listed may be subject to change without notice
1. The length of printing or cutting is subject to the limitations of the program.
2. 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
3. Operating environment (Use in an operating environment within this range.)
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
4. Operating environment (Use in an operating environment within this range.)
