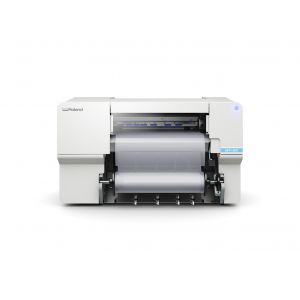

BY-20

Printing Method

Piezo ink-jet method

Media

Width

5.91 to 20.2 in. (150 to 515 mm)

Thickness

Maximum 39.3 mil (1.0 mm) with liner, for printing

Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting

Roll outer diameter

Maximum 5.9 in. (150 mm)

Roll weight

Maximum 13.2 lb. (6 kg)

Core diameter

3 in. (76.2 mm) or 2 in. (50.8 mm)

Printing/cutting width (*1)

Maximum 18.89 in. (480 mm)

Ink

Type

220-ml cartridge

Colors

Cyan, Magenta, Yellow, Black, White

Printing resolution (dots per inch)

Maximum 1,440 dpi

Cutting speed

0.39 to 5.9 in/s (10 to 150 mm/s)

Blade force (*2)

30 to 500 gf

Blade

Type

Roland CAMM-1 series blade

Offset

0.000 to 1.500 mm (0.0 to 59 mil)

Software resolution (when cutting)

0.025 mm/step (0.98 mil/step)

Media heating system (*3)

Print heater set temperature:

86 to 95 °F (30 to 35 °C)

Dryer set temperature:

86 to 100.4 °F (30 to 38 °C)

Connectivity

Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Power-saving function

Automatic sleep feature

Rated input

100-240 Va.c. 50/60 Hz 2.1 A

Power consumption

During operation

Approx. 185 W

Sleep mode

Approx. 27W

Acoustic noise level

During operation

62 dB (A) or less

During standby

60 dB (A) or less

Dimensions (Width x Depth x Height)

42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)

Weight

137 lb. (62 kg)

Environment

During operation (*4)

Temperature: 68 to 89.6 °F (20 to 32 °C)

Humidity: 30 to 80 % RH (no condensation)

Not operating

Temperature: 41 to 104 °F (5 to 40 °C)

Humidity: 20 to 80 % RH (no condensation)

Included items

Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

*1

The length of printing or cutting is subject to the limitations of the program.

*2

500 gf is the maximum instantaneous blade force.

The blade force must be adjusted according to details such as the media thickness.

*3

Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.

Depending on the ambient temperature and media width, the preset temperature may fail to be reached.

*4

Operating environment (Use in an operating environment within this range.)
